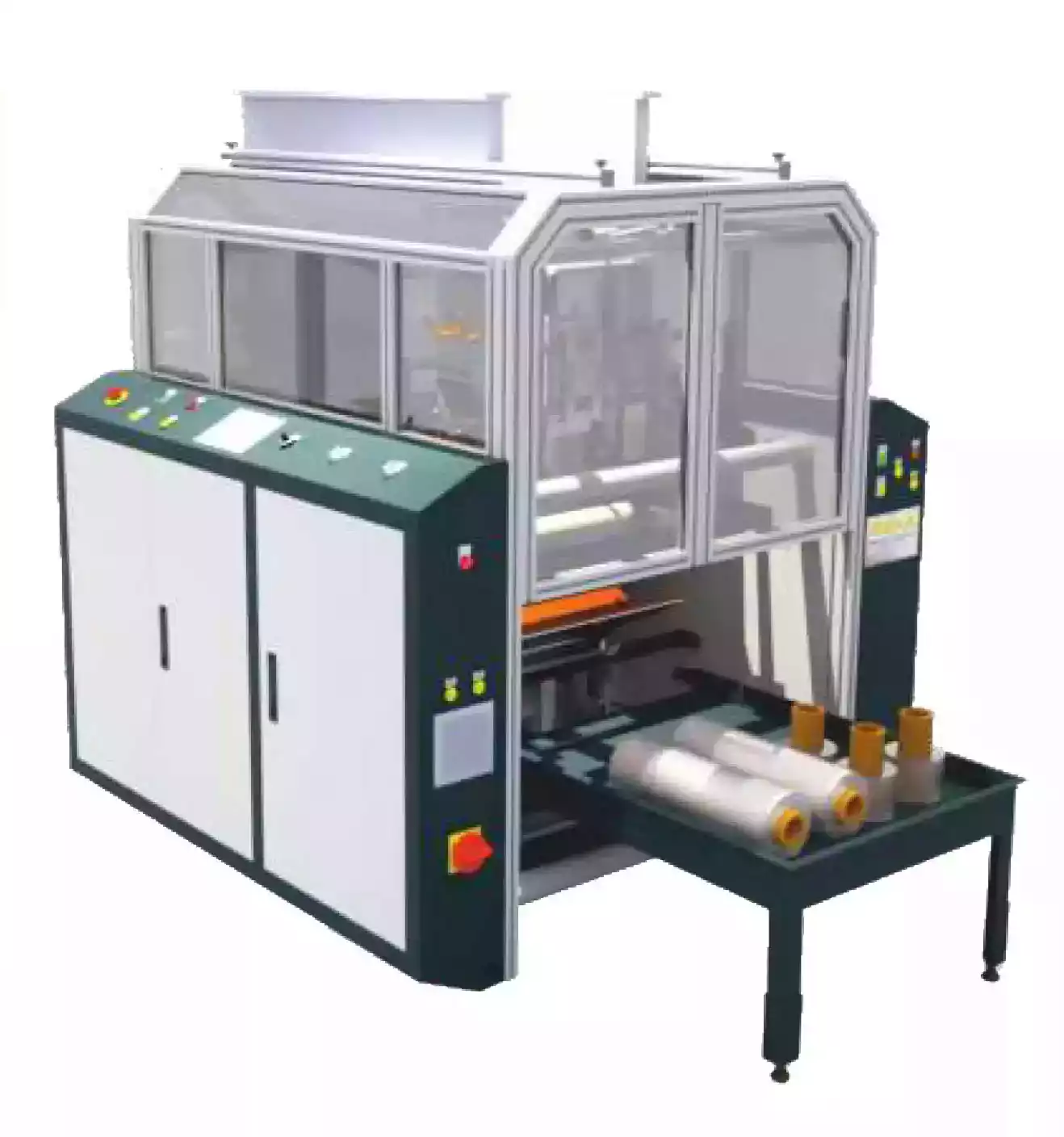

ASM 1500 - S Stretch Film Slitter Rewinder Machine

Machine used for slitting 8-23 micron pallet stretch on jumbo rolls to 2, 3, 4…10 units. Machine could also rewind jumbo rolls to smaller rolls without slitting. Machine rewinding speed could reach to 1400 m/min with the 2 servo motors and jumbo roll could be right-left adjustable.

Machine Speed
1400 m/min
Roller Width
720mm
Electric Power
10 Kw
Core Size
Ø 38 - Ø  50 - Ø 76 mm

ASM 1500S

Technical Specifications

ASM 1500S Automatic Slicing Stretch Wrapping Machine

  • Machine Speed: 1400 m/min
  • Rewinding Time (300m) : 19sec (300m) - 80sec (1500m)
  • Idle Roller Width (Max): 720mm
  • Core Diameter: Ø 38 - Ø  50 - Ø 76 mm
  • Main Motor: 2x5 KW Servo Motor
  • Rewinding Diameter: 300 mm (Max)
  • Jumbo Coil Weight: 75kg (Max)
ASM 1500S

Machine Specifications

ASM 1500S Automatic Machine Detailed Features

  • 2,3,4,5,7,8,10 Pcs Slicers Feature
  • 1 Piece Of Slitting Unit (100 mm)
  • Full Automatic Rewinding And Changing
  • Film Finish Sensor
  • Coil Finish Sensor
  • Cutting With Hot Wire
ASM 1500

General Specifications

General Feature Information For Our ASM 1500 Machine

  • OMRON 7" Touch Panel
  • Omron Plc Control System
  • Omron Main Driver
  • Mindman Pneomatic System
  • Electrical Power: 380 V - 50 Hz 10 KW
  • Paper Core Magazine: 100pcs - 50 mm
  • Machine Weight: 1400 Kg
  • Machine Dimensions: 1650x1600x1900 mm
